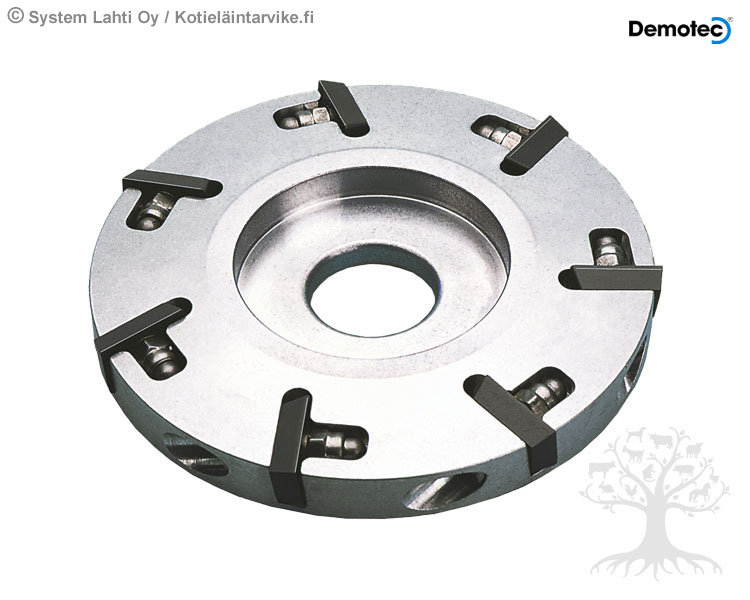

Demotec Hoof Cutting disc DL Ø100mm. In close cooperation with professional hoof care specialists; this disc was developed to cut hooves. The DL disc is a disc that will quickly convince you of its effectiveness and will help you save on costs. The base plate of the DL disc is constructed of aluminum. This enables a quiet operation and comfortable, easy handling. 7 cutting blades constructed of durable hard metal (Widia) ensure a high level of removal and longevity. The blades are factory adjusted to remove quickly and form large chips. This adjustment allows the horn to be removed fast and carefully, without smell, dust or temperature buildup. Experience values show that 400 and more animals held in open pens can have their hooves cut with one set of blades. The high value is significantly reduced with harder hooves, often found in closed pens.
The advantages of the DL disc at a glance:
- Very low cost per animal
- Careful handling without smell or dust development
- No heating up of the hoof
- Shorter work time
- The revolving blades are usable on both sides and can be individually replaced when needed. This allows for a long lifespan of a set of blades
- The blades are adjusted from the factory to remove quickly and form large chips.
- Very clean cut. This makes it easier to identify potential hoof defects.
- The base plate of the DL disc is constructed of aluminum. This enables a quiet operation and comfortable, easy handling. It also spares the angle grinder mechanism of wear and tear. This construction significantly increases the lifespan of the device.
Instructions for Assembly
- Press a centering disc into each reversible cutting blade
- Press both into the slot of the DL disc
- Put in a screw
- Insert screw through hole and cutting blade and fix it with 20 NM
Attention!
- Always follow the safety instrucions of the grinder
- Always wear safety glasses and gloves
- Always fix the claw properly
After first use the blades should be checked and fixed again if neccessary.
Available separately:
Spare blade set 10DL65
Spare screw 10DL67
