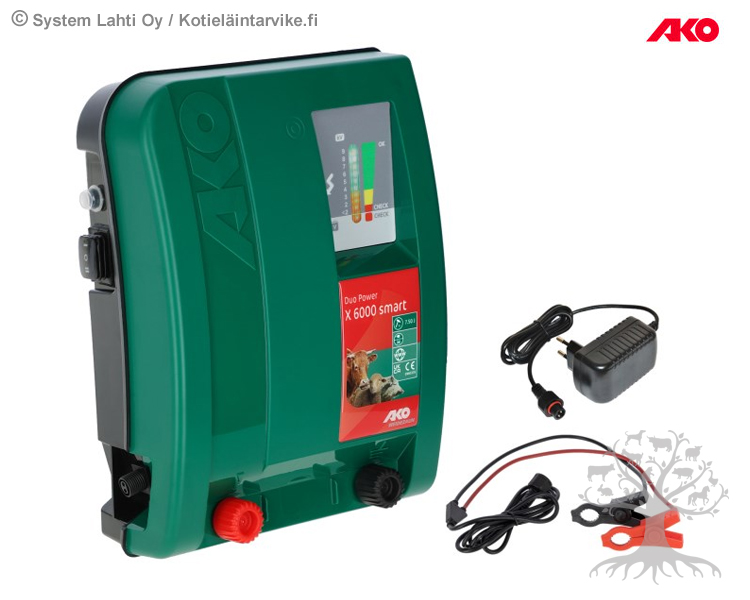

Duo Power X 6000 smart

The new Duo Power X 6000 smart has a direct connection to the Cloud/Internet (not via WLAN), and enables the simple, distance-independent monitoring and control of fence systems.

The device can be controlled directly by mobile telephony. An additional device or WLAN within the reach of the device is therefore unnecessary.

The fence device can be controlled and monitored from a smartphone or from a computer via a browser, using a free app.

If there are problems relating to the fence (e.g. the voltage drops below the minimum protection level), the device, or a weak 12-Volt battery, then as the user, you are warned in real time by a push message.

In the app, you are informer of both the current status and the historical trends of the fence and supply voltages.

You can switch the fence device ON/OFF via the app, modify alarm levels (e.g. threshold of minimum protection voltage can be set individually), and adjust the output power to the system’s needs.

Integrated GPS location function - for localising the device, especially in the event of theft - as soon as the device is connected to a power source.

TIP: The unit’s power consumption can be reduced by reducing the output power via app.

12/230 Volt DUO Unit – maximum flexibility combined with powerful output
    our all-round device for more demanding mobile or static applications - ideal for horses, cattle, sheep and deterring wild boars and wolves
    can be used with medium to heavy vegetative growth
    optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
    deep discharge protection for the 12 volt battery
    microprocessor controlled
    High safety in line with the latest safety standards
    incl. free app download
    with High/Low/OFF switch for 2 different output powers
    robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
    integrated hanging device for wall mounting
    corresponds to applicable EU safety standards

Technical data:
Stored Energy: 7.5 J
Max. Output: 5 J
Max. voltage 12,400 V
Voltage in Open Circuit 10,400 V
Voltage at 500 Ohms: 9,600 V
Theoretical fence length VDE: 130 km
Max. fence length without vegetation: 40 km
Max. fence length with medium vegetation: 11 km
Max. fence length with high vegetation: 6 km
Approx. Number of Electrifiable Nets (50m): 20 pcs
Grounding (Qty 1 m earth rods): 3 pcs
Power Consumption: 65 mA - 400 mA

Matching accessories (not included in scope of delivery):

recommended solar module: 375559 (55 Watt), connection directly to the 12-Volt battery, ideal with ground anchor 442382

recommended 12 Volt battery: Premium AGM 12 V, 110 Ah (441204)

1 m earth rod (44615), at least 3 x

3 m ground connection cable for connecting the ground rods (44635)

Warning Sign (446513)

multi-colour LED bar graph display for output voltage and battery control
