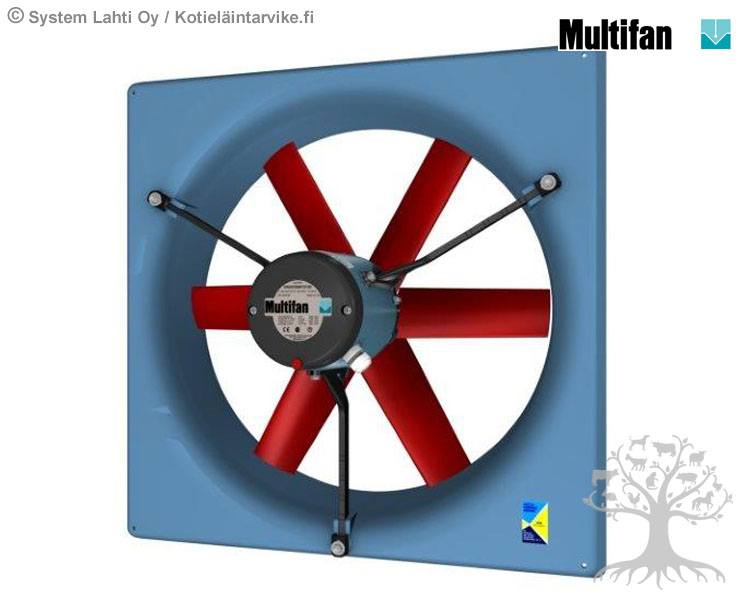

Multifan Panel Fan 30cm
- Product Code: V4E30AAM10100
Multifan Panel Fan 30cm. Single phase panel fan 230V/50Hz. The Flow rate volume is 0 Pa= 2350m³/h and 50 Pa =1700m³/h. The Panel fan is made of the best materials. The motors are very quiet in operation compared to competing products. The power consumption of the variable speed motors is low. Protection class IP55 (dust and water resistant) and insulation class CL.F (155 C).
Advantages:
-Low energy costs
-Dust and splash-proof
-Low maintenance
-Low noise level
Dimensions:
A01: 312 mm
A02: 443 mm
A03: 443 mm
A04: 395 mm
A05: 395 mm
A06: 192 mm
A07: 340 mm
A08: 84 mm
A09: 36 mm
A10: 8 mm
Technical specifications:
Voltage: 230V
Frequency: 50Hz
Speed: 1400RPM
Power consumption: 100W
Insulation class:CL.F
IP rating: IP55
Weight: 8.2kg
See attached for more detailed specifications.
