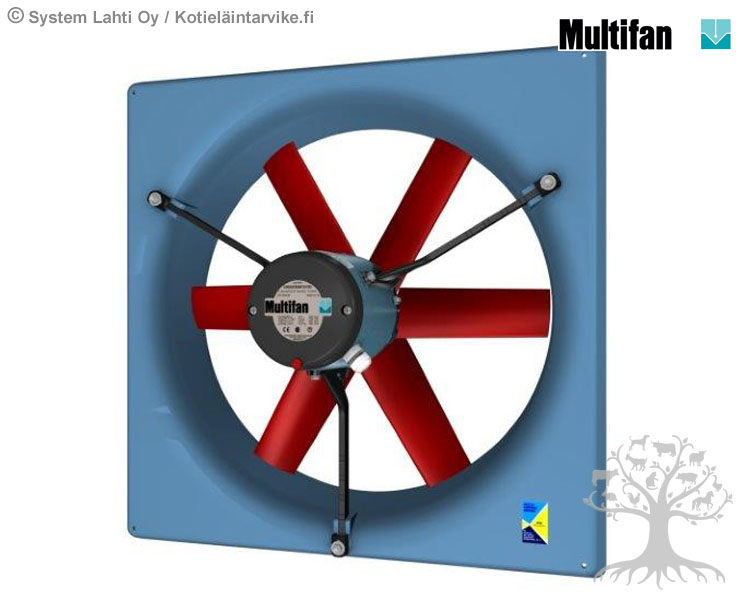

Multifan Panel Fan 35cm
- Product Code: V4E35AAM10100
Multifan Panel Fan 35cm. Single phase panel fan 230V/50Hz. The Flow rate volume is 0 Pa= 3500m³/h and 50 Pa =2850m³/h. The Panel fan is made of the best materials. The motors are very quiet in operation compared to competing products. The power consumption of the variable speed motors is low. Protection class IP55 (dust and water resistant) and insulation class CL.F (155 C).
Advantages:
-Low energy costs
-Dust and splash-proof
-Low maintenance
-Low noise level
Dimensions:
A01: 362 mm
A02: 493 mm
A03: 493 mm
A04: 445 mm
A05: 445 mm
A06: 192 mm
A07: 390 mm
A08: 84 mm
A09: 36 mm
A10: 8 mm
Technical specifications:
Voltage: 230V
Frequency: 50Hz
Speed: 1400RPM
Power consumption: 150W
Insulation class:CL.F
IP rating: IP55
Weight: 8.7kg
See attached for more detailed specifications.
